Gold Insulated EV Mechanics Tool Kit
58 tools supplied in a tool trolley. All drawers include foam inserts to hold each tool in place. All tools provided are tested to EN/IEC 60900, usable up to 1000V AC / 1500V DC
5 DRAWER ROLLER CABINET TOOLBOX WITH BALL-BEARING RUNNERS
- Four castors 125mm in Ø: 2 fixes and 2 steerings (one with a brake)
- Front centralised safety lock comes with 2 keys
- Static load capacity: 800kgs
- Integrated side bottle holder
- Cabinet weight: 55kgs (when empty)
- Overall Size: 740mm (W) x 445mm (D) x 955mm (H)
- Drawer Size (x 5): 588 (W) x 367mm (D)
- 2 drawers: 70mm (H)
- 2 drawers: 140mm (H)
- 1 drawer: 290mm (H)
KIT CONTENTS
- Insulated Reversible Ratchet 3/8″ Sq Dr
- Insulated Reversible Ratchet 1/2″ Sq Dr
- Insulated Extension Bar 3/8″ Sq Dr 125mm
- Insulated Extension Bar 3/8″ Sq Dr 250mm
- Insulated Extension Bar 1/2″ Sq Dr 125mm
- Insulated Extension Bar 1/2″ Sq Dr 250mm
- Insulated Adjustable Spanner (Max Jaw 19mm)
- Insulated Adjustable Spanner (Max Jaw 33.5mm)
- Insulated Socket 3/8″ 6pt 8mm
- Insulated Socket 3/8″ 6pt 10mm
- Insulated Socket 3/8″ 6pt 13mm
- Insulated Socket 3/8″ 6pt 15mm
- Insulated Socket 3/8″ 6pt 17mm
- Insulated Socket 3/8″ 6pt 19mm
- Insulated Socket 1/2″ 6pt 10mm
- Insulated Socket 1/2″ 6pt 13mm
- Insulated Socket 1/2″ 6pt 15mm
- Insulated Socket 1/2″ 6pt 17mm
- Insulated Socket 1/2″ 6pt 19mm
- Insulated Socket 1/2″ 6pt 21mm
- Insulated Slotted Screwdriver 2.5mm x 0.6mm Tip, 75mm Blade Length
- Insulated Slotted Screwdriver 4mm x 0.8mm Tip, 100mm Blade Length
- Insulated Slotted Screwdriver 5.5mm x 1mm Tip, 150mm Blade Length

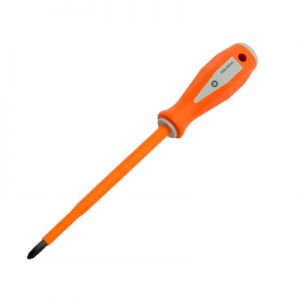

- Insulated Pozidrive Screwdriver, PZ1 80mm Blade Length
- Insulated Pozidrive Screwdriver, PZ2 100mm Blade Length
- Insulated Combination Pliers 180mm Long
- Insulated Long Nose Pliers 160mm Long
- Insulated Side Cutter Pliers 160mm Long
- Insulated Allen Key Socket, 3/8″ 4mm
- Insulated Allen Key Socket, 3/8″ 5mm
- Insulated Allen Key Socket, 3/8″ 6mm
- Insulated Allen Key Socket, 3/8″ 8mm
- Insulated Allen Key Socket, 3/8″ 10mm
- Insulated Allen Key Socket, 1/2″ 8mm
- Insulated Allen Key Socket, 1/2″ 10mm
- Insulated Open Ended Spanner 10mm
- Insulated Open Ended Spanner 13mm
- Insulated Open Ended Spanner 15mm
- Insulated Open Ended Spanner 17mm
- Insulated Open Ended Spanner 19mm
- Insulated Ring Spanner 8mm
- Insulated Ring Spanner 10mm
- Insulated Ring Spanner 13mm
- Insulated Ring Spanner 15mm
- Insulated Ring Spanner 17mm
- Insulated Ring Spanner 19mm
- Insulated Screwdriver Handle Allen Key, 2.5mm Point Size, 100mm Blade Length
- Insulated Screwdriver Handle Allen Key, 3mm Point Size, 100mm Blade Length
- Insulated Screwdriver Handle Allen Key, 4mm Point Size, 145mm Blade Length
- Insulated Screwdriver Handle Allen Key, 5mm Point Size, 145mm Blade Length
- Insulated Screwdriver Handle Allen Key, 6mm Point Size, 195mm Blade Length
- Insulated Torx Screwdriver T10
- Insulated Torx Screwdriver T15
- Insulated Torx Screwdriver T20
- Insualted Torx Screwdriver T25
- Insualted Torx Screwdriver T27
- Insualted Torx Screwdriver T30
- Insulated 3/8″ Torque Wrench (5-50Nm)
Have your company logo engraved on every tool. Contact us for more information.
